Sintered Stainless Steel Filter Element – Anti-Corrosion and Long Service Life

Several different sizes, shapes and specifications of stainless steel powder filter elements on gray background.

Multiple choice of stainless steel powder filter elements.

Sintered metal powder filter elements, also called sintered metal porous filters, adopt stainless steel 304, 304L, 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes. Because of stainless steel material, so the sintered metal powder filter elements are also known as sintered stainless steel powder filter element.

Sintered stainless steel powder filter elements can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization, they are widely used in medical industry, chemical industry, metallurgical industry and field of gas purification.

Four stainless steel sintered filter felt plates stack up.
SSSPFE-01: The powder-made surface can filtrate out most particles and leave pure materials.
Two cylindrical stainless steel sintered fiber elements stand side by side and they are implanted in the circular filters.
SSSPFE-02: The cylindrical stainless steel sintered fiber elements have high filtration efficiency.
A long and a short sintered stainless steel powder filter cartridges are put orderly.
SSSPFE-03: Sintered stainless steel powder filter element can be used in many filtration process.
Ten long sintered stainless steel powder filters stack well on the wooden plate.
SSSPFE-04: The length of the sintered stainless steel powder filter tubes can be made into any size according to customers' needs.

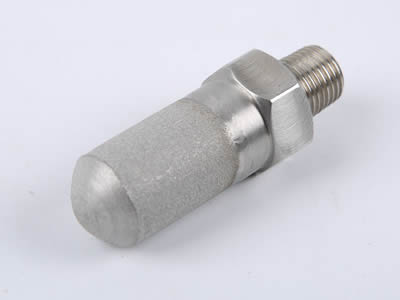

A detail of stainless steel powder filter element with screw part.
SSSPFE-05: Fine and even surface ensure high filtering performance.
A details of screw on the stainless steel powder filter element.
SSSPFE-06: Stainless steel screw components for easy installation and corrosion resistance.
A hand is holding a vernier caliper to measure the height of stainless steel filter element.
SSSPFE-07: Height measurement.
A hand is holding a vernier caliper to measure the diameter of stainless steel filter element.
SSSPFE-08: Diameter measurement.

Applications for sintered stainless steel powder filter element:

  • Dust, bacteria and oil fog removal of gas and steam.
  • Noise reduction, gas buffer.
  • The recycle of catalysts.
  • Decarburization filtration.
  • Viscous liquid filtration.
  • Strong polar solvent filtration.
  • Retention of particles from off-gas of fluidized beds.
  • The filtration and separation of pharmaceutical, beverage, food, metallurgy, petroleum and other fields.

Features:

  • High filtration efficiency.
  • High mechanical strength.
  • High permeability and porosity.
  • Anti-corrosion and anti-pressure.
  • Even distribution of pores catalysis recycling accurate filtering.
  • Can be used at high and low temperature.
  • Easy to clean and can be used for many times.
  • Long service life.

Specifications:

  • Item: sintered stainless steel powder filter element.
  • Material: stainless steel powder.
  • Thickness of wall: 1.0 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, etc.
  • Length: 10", 20", 30", 40".
  • Working Temperature: -200 °C to 1000 °C.
Specifications of Sintered Stainless Steel Powder Filter Element
Mode Filtering level Filtering precision (um) Permeability
(m3/h·m2· kPa)
Thickness (mm) Compressive strength
(MPa/cm2)
SSSFEP1 T9 0.2 1.5 0.6 – 10 3
SSSFEP2 T8 0.5 3 3
SSSFEP3 T7 1 5 3
SSSFEP4 T6 2 15 3
SSSFEP5 T5 5 40 2.5
SSSFEP6 T4 10 120 2.5
SSSFEP7 T3 20 250 2.5
SSSFEP8 T2 30 500 2.5
SSSFEP9 T1 50 800 2.5
